Process Execution Model
How are integrations executed on Frends.
A Process in Frends is executed by the Frends Runtime, where Environments, Agent Groups, Agents, and Triggers work together to start and run integrations in the right place, with the right configuration.
Process and Process Instance

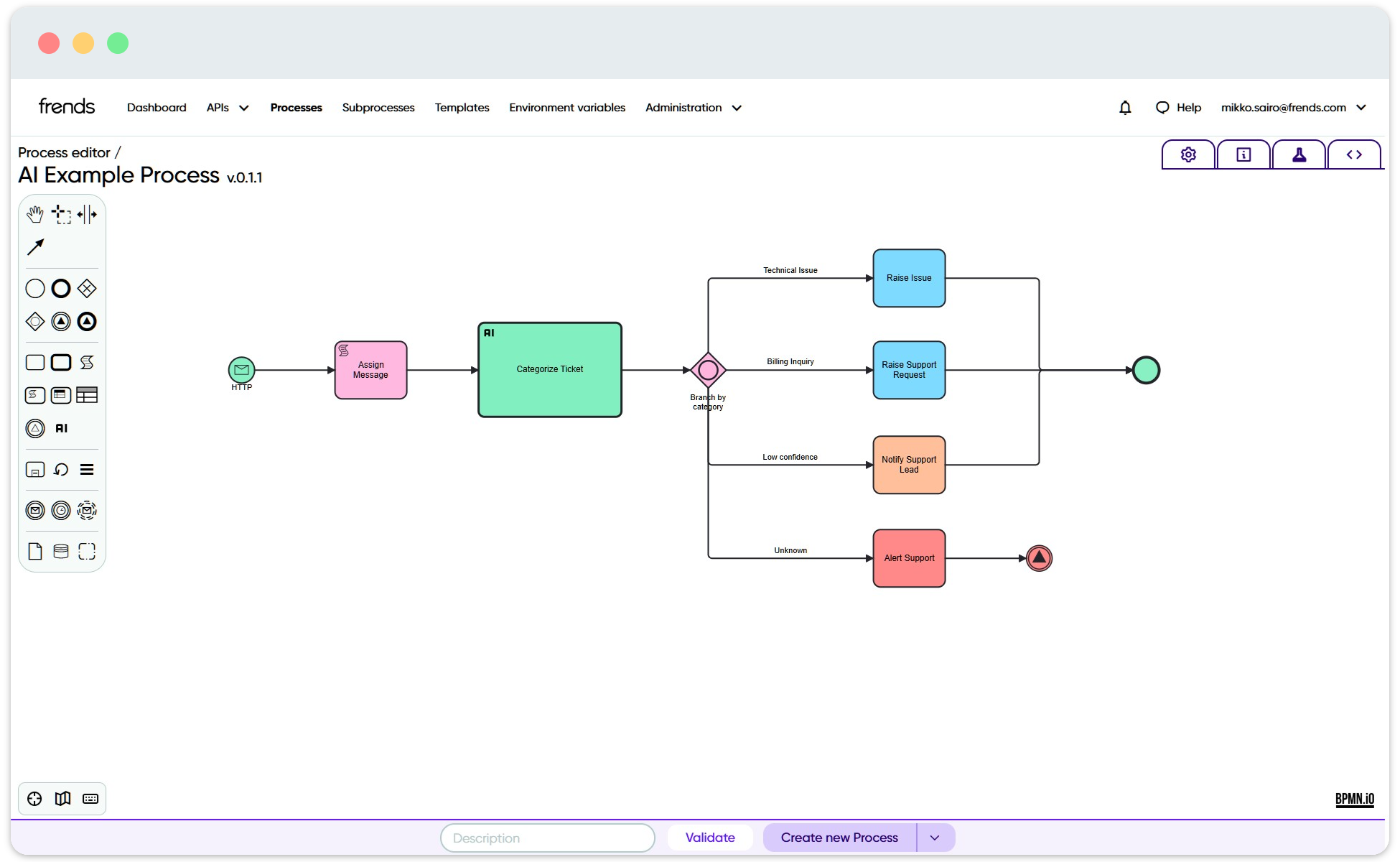

A Process is the visual integration flow that defines what should happen when an integration runs. It can include a Trigger, Tasks, decisions, loops, Subprocess calls, and other elements that together describe the automation or integration logic.
When a Process is executed, Frends creates a single execution of that Process. This execution is called a Process Instance. The Process Instance contains information about what happened during the run, such as when the Process was executed, whether it succeeded, how long it took, and what results were produced by the different steps.
The Process definition describes what should happen. The Process Instance shows what actually happened during one specific run.
Deployment before execution
Before a Process can run automatically, it must be deployed to an Agent Group. Deployment makes the Process and its Triggers available to the Agents in that group.

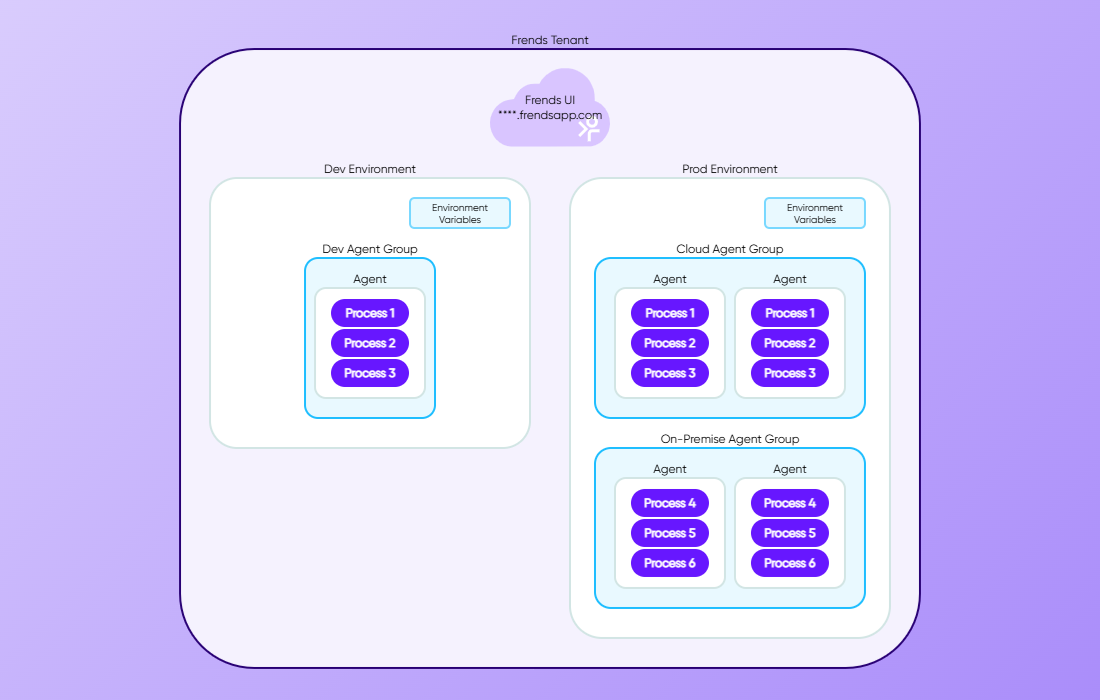

The Environment provides the logical context and Environment-specific configuration. The Agent Group provides the deployment target. The Agents provide the execution runtime. The Trigger provides the start condition. The Process provides the integration logic.
This separation allows the same Process design to be promoted through different Environments and executed by different Agent Groups without redesigning the integration logic.
Execution flow
Process execution begins when a deployed Trigger condition is met. This can happen because a user starts the Process manually, a schedule reaches its configured time, an HTTP request is received, a file is detected, or another supported event occurs.
The Agent handling the Trigger starts a new Process Instance. If the Trigger provides input, such as request data, file information, message content, or manual parameters, that input becomes available to the Process execution.
After the Process starts, the Agent executes the Process flow. It follows the Sequence flows between elements, runs Tasks, evaluates conditions, performs transformations, calls external systems, and handles any configured branching or error logic.
When the Process reaches its end, the Process Instance is completed. The execution information is sent back to Frends for monitoring. Users can then inspect the Process Instance to see the execution status, duration, executed steps, logged values, and possible errors.
Monitoring Process execution

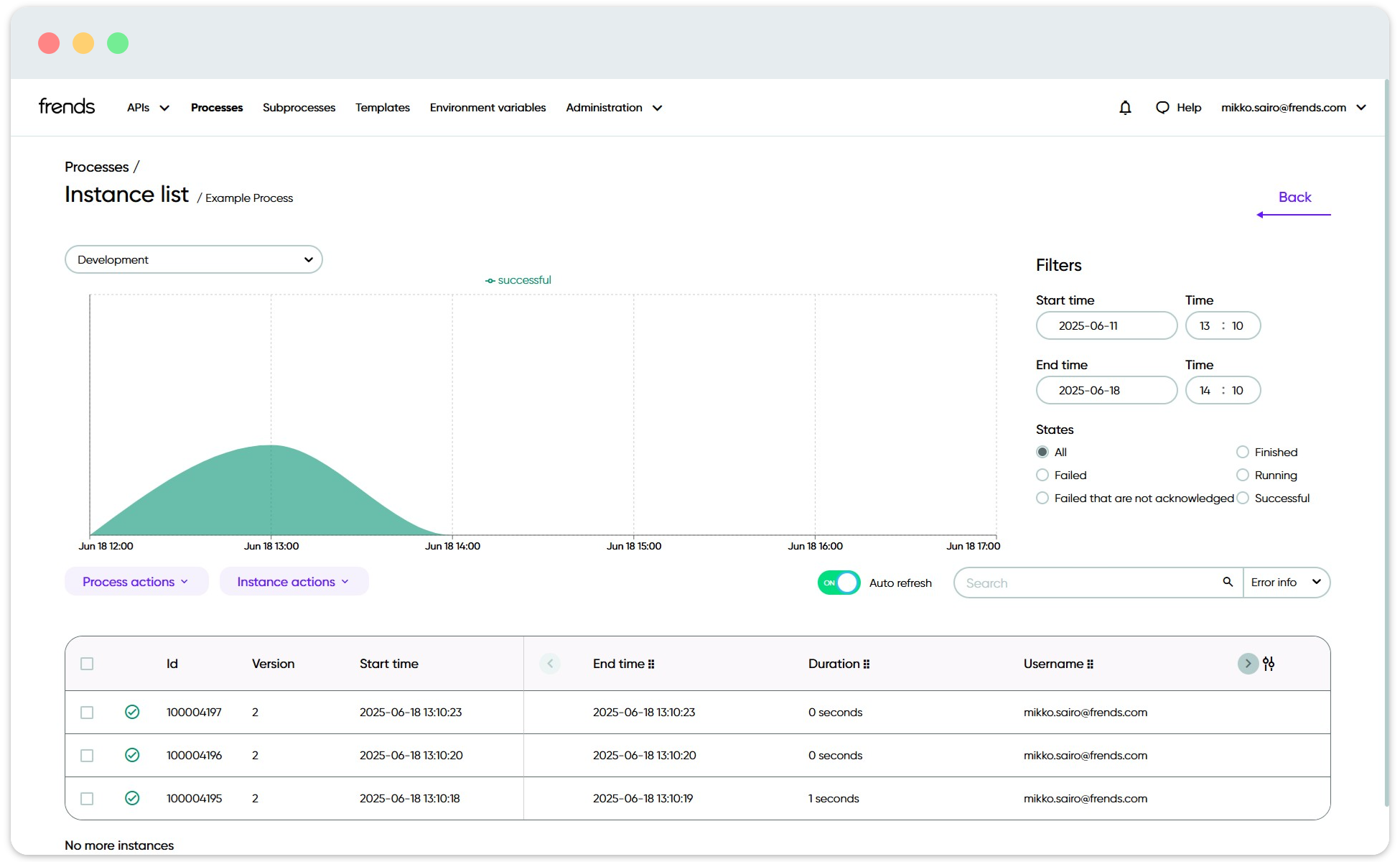

Each Process run creates a Process Instance. Process Instances are used to monitor what has happened during execution.

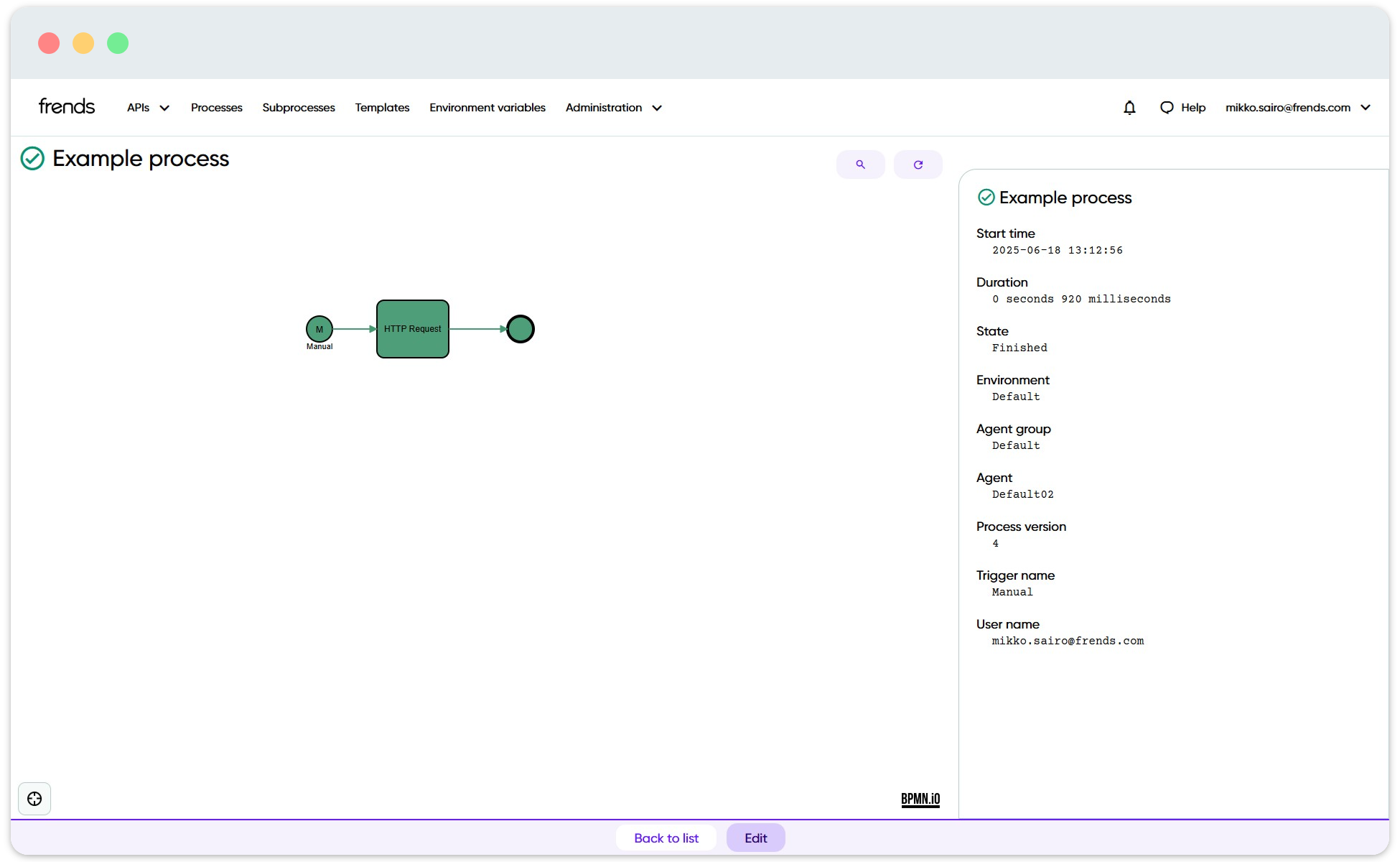

From a Process Instance, users can see whether the execution succeeded or failed, when it started, how long it took, and which Agent, Agent Group, and Environment were involved. Depending on logging settings, users can also inspect values produced by individual Process elements.
This makes Process Instances central to understanding runtime behavior. They connect the design-time Process to the actual runtime execution and provide visibility into how the integration behaved in a specific Environment.
